ShtokCustomworx 10 Pole Chassis PCB set
Buy at discounted prices
| Minimum Qty | Discount |
|---|---|
| 2 + | 2% off |
| 3 + | 3% off |
| 4 + | 4% off |
| 5 + | 5% off |
| 6 + | 6% off |
| 7 + | 7% off |
| 8 + | 8% off |
| 9 + | 9% off |
| 10 + | 10% off |

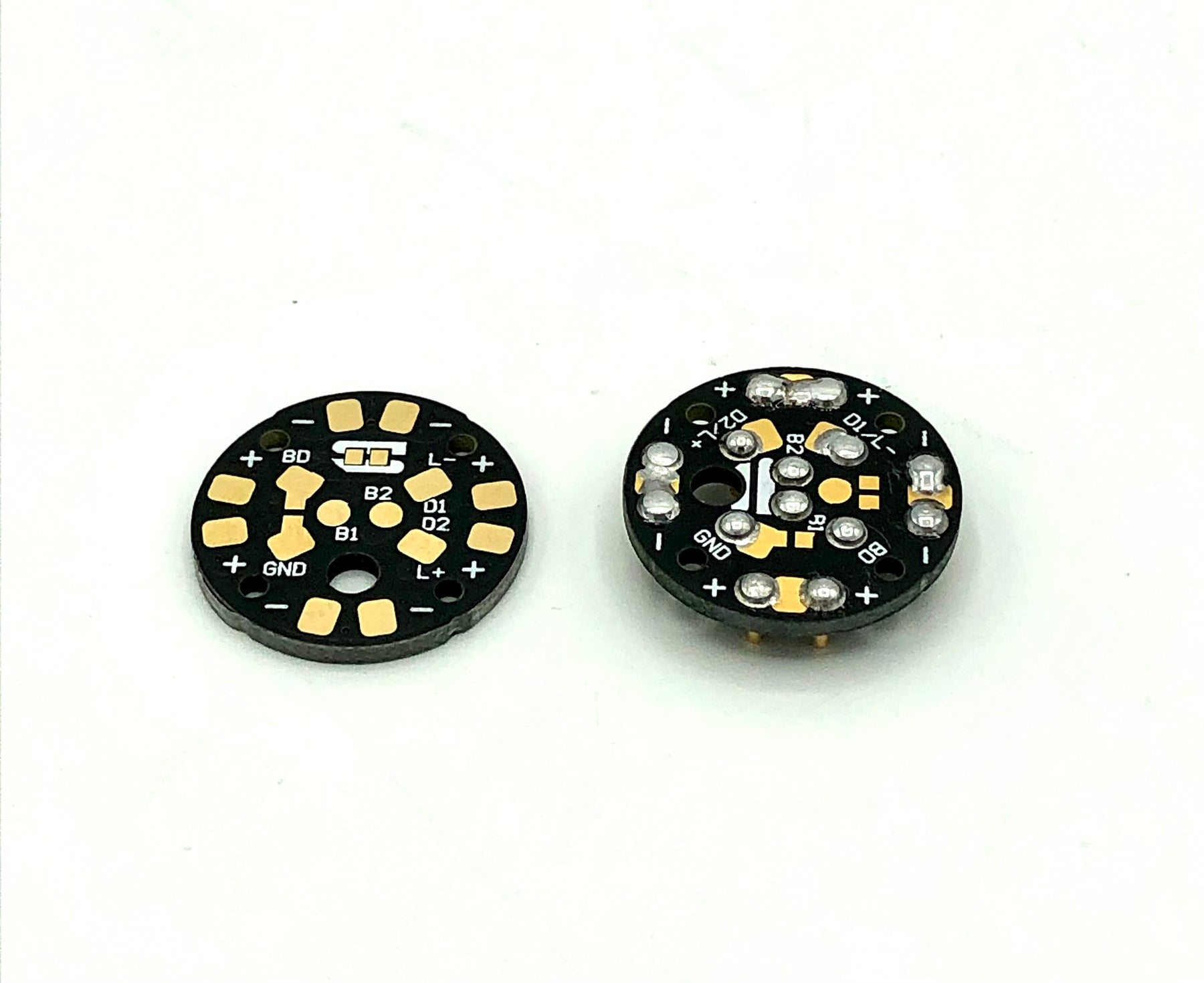

These are designed and manufactured by ShtokCustomWorx with the idea of using it as a way to have a removable chassis system. So one chassis could either be used for multiple hilts or be removable.

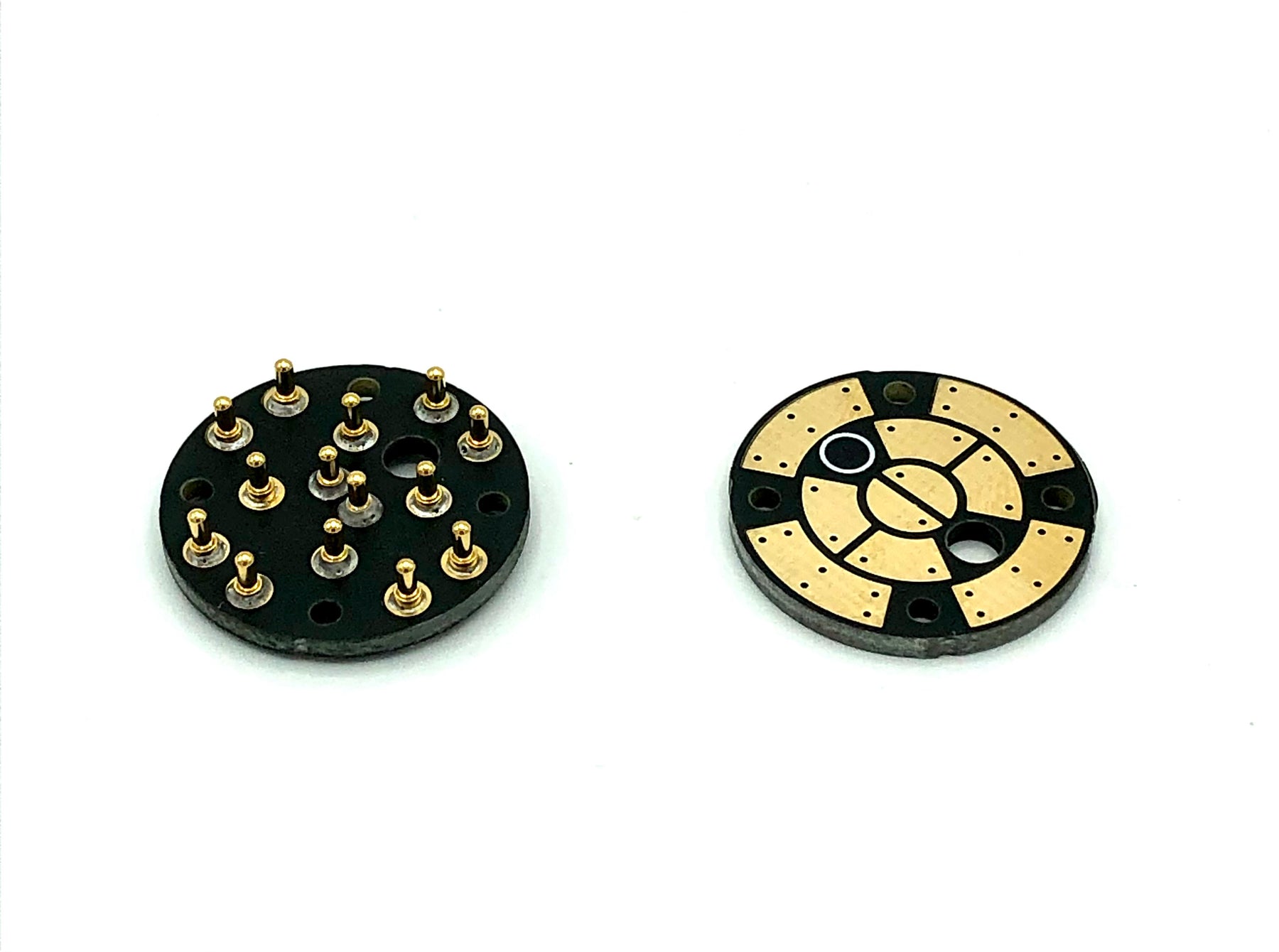

Chassis PCB alignment utilizes a physical rod that corresponds to the matching set. Brass rods are available in the shop to use or you can use your own.
It is a DIY item and designers will be using these in the future for their chassis designs. You can also design your own.

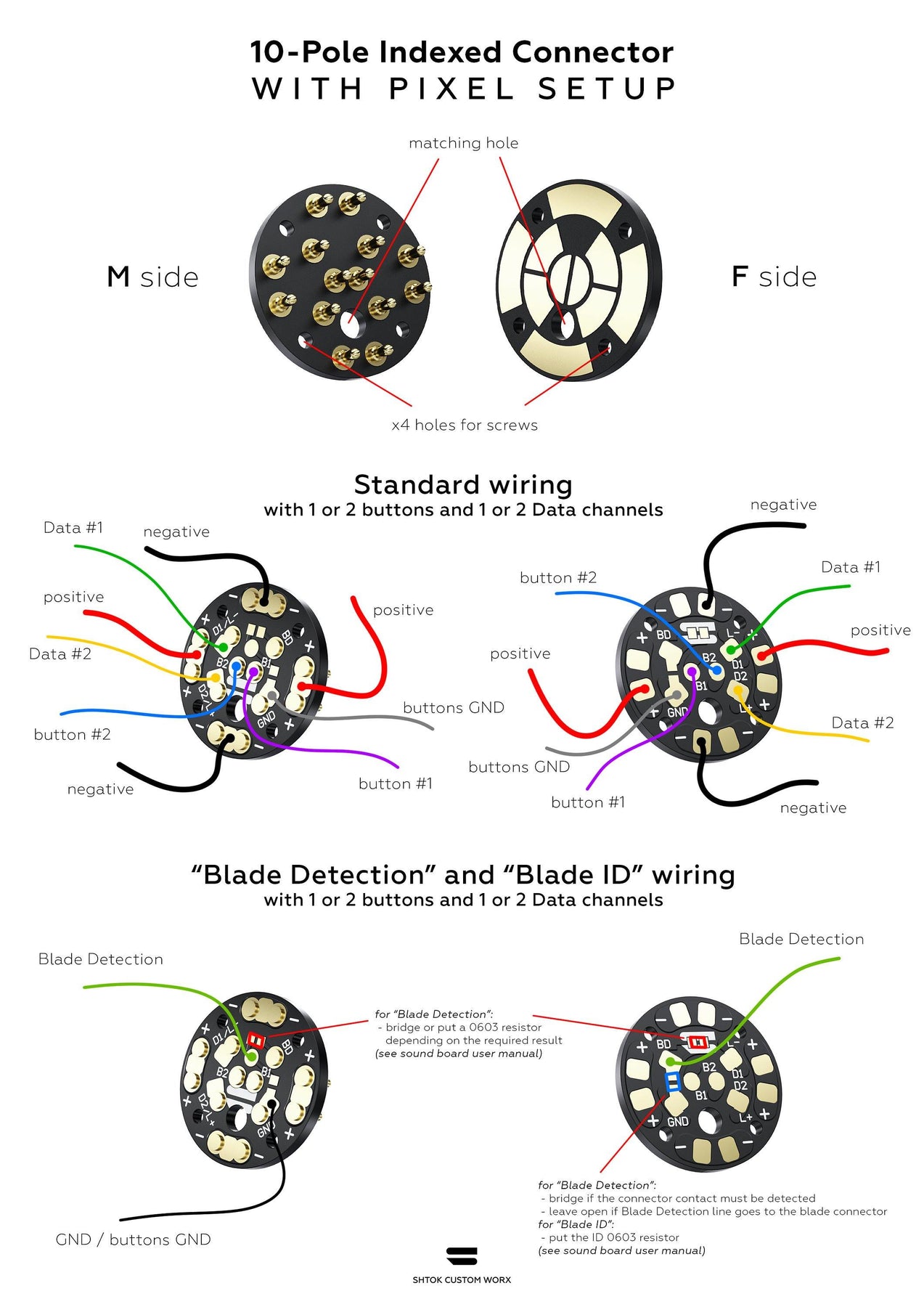

Supports pixel builds and led builds, 2 switches, blade detection and tangible font selection(feature of cfx)
OD measurement of 20.5mm
